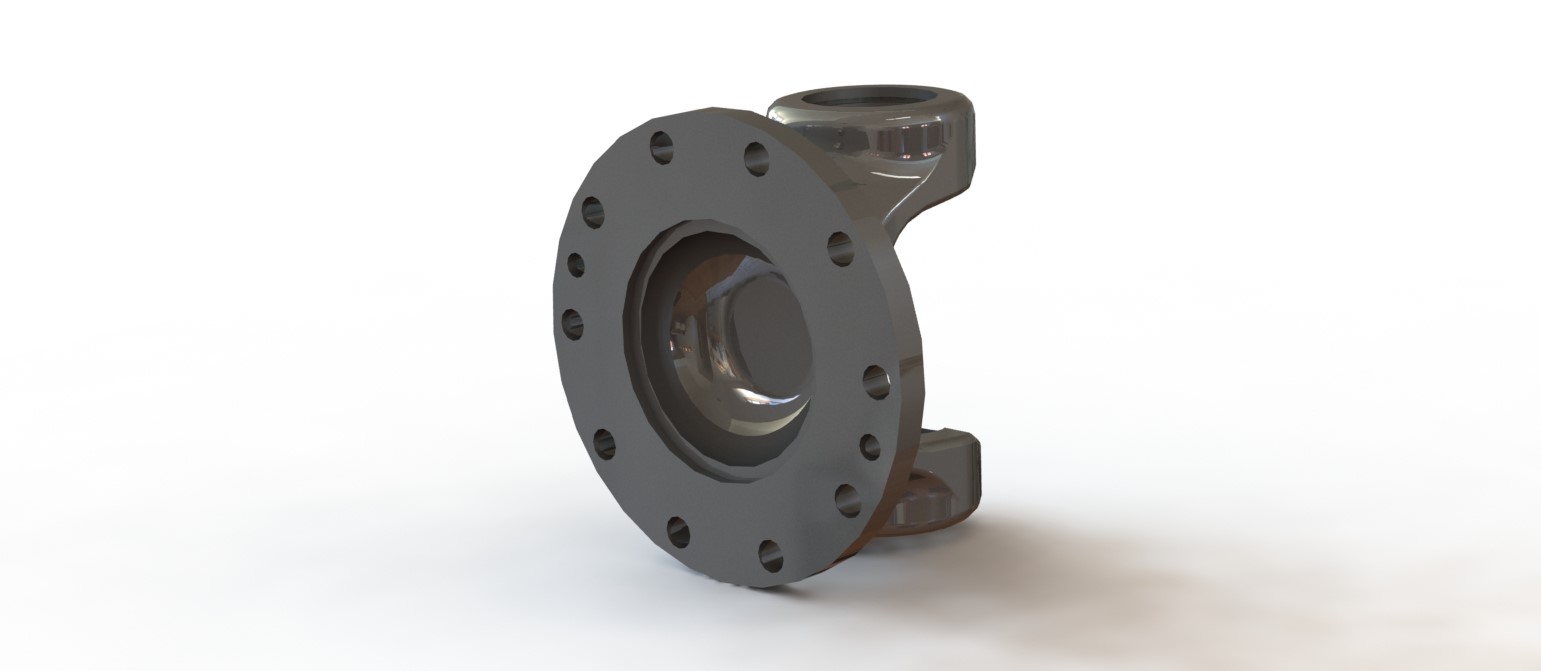

Flanges DIN up to size 63

Flange DIN up to size 63

Flange DIN up to size 63

Flange DIN up to size 63

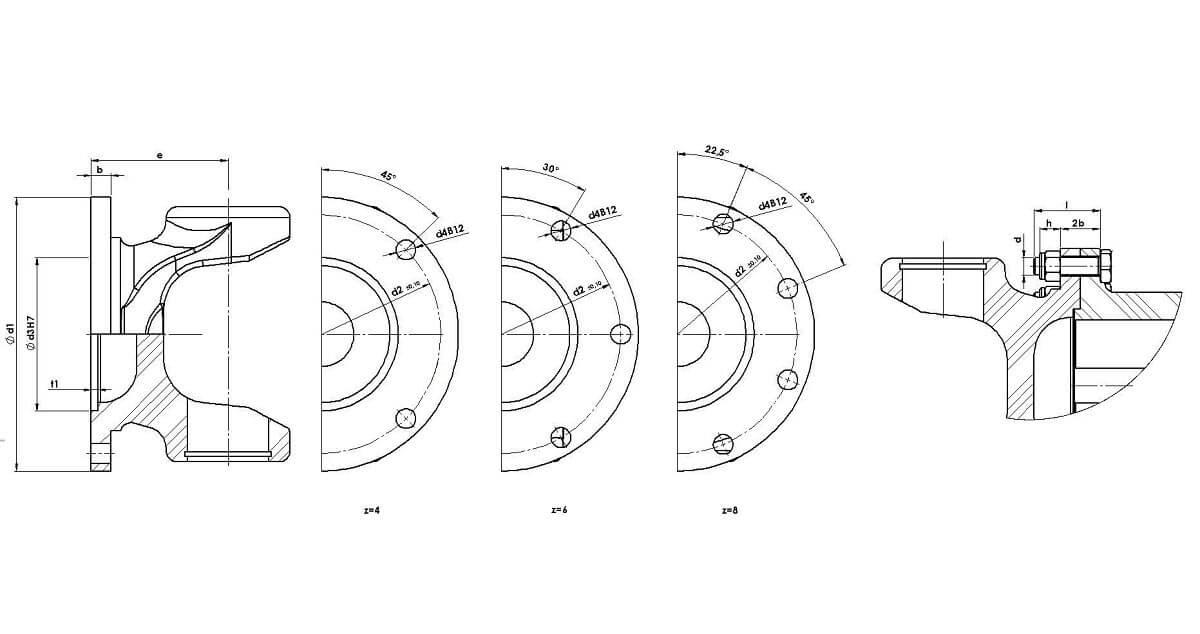

Size d1 d2 d3 z x d4 b t1 e ß max d l h 2b MA Bolts
   [mm] [mm] [mm] [mm] [mm] [mm] [mm] [°] [mm] [mm] [mm] [mm] [Nm]  1)
15 58 47 30 4 x 5 4,5 2 32 25 M5 16 5 9 9
15 65 52 35 4 x 6 4,5 2 32 25 M6 16 6 9 15
30 75 62 42 6 x 6 5 2 47 30 M6 20 6 10 15 not
30 90 74,5 47 4 x 8 6 3 40 20 M8 22 8 12 35
30 90 74,5 47 4 x 8 6 3 47 30 M8 22 8 12 35 yes
30 90 74,5 47 6 x 8 6 3 47 30 M8 22 8 12 35
30 100 84 57 6 x 8 6,5 3 40 20 M8 22 8 13 35
43 90 74,5 47 4 x 8 6,5 3 48 20 M8 22 8 13 35 not
43 100 84 57 6 x 8 6,5 3 48 20 M8 22 8 13 35 not
43 100 84 57 6 x 8 6,5 3 58 35 M8 22 8 13 35 yes
43 100 84 57 8 x 8 6,5 3 58 35 M8 22 8 13 35 not
43 120 101,5 75 8 x 8 7 3 48 20 M8 25 8 14 35 not
43 120 101,5 75 8 x10 7 3 48 20 M10 25 10 14 70 not
53 100 84 57 6 x 8 8 3 65 25 M8 25 8 16 35 not
53 100 84 57 6 x10 8 3 65 25 M10 30 10 16 70 not
53 100 84 57 8 x10 8 3 65 25 M10 30 10 16 70 not
53 120 101,5 75 8 x 8 8 3 56 20 M8 25 8 16 35 not
53 120 101,5 75 8 x 8 8 3 70 35 M8 25 8 16 35
53 120 101,5 75 8 x10 8 3 56 20 M10 30 10 16 70 not
53 120 101,5 75 8 x10 8 3 70 35 M10 30 10 16 70 yes*
53 150 130 90 4 x10 10 3 56 20 M10 35 10 20 70 not
53 150 130 90 8 x10 10 3 56 20 M10 35 10 20 70 not
53 150 130 90 8 x12 10 3 56 20 M12 35 12 20 120 not
63 120 101,5 75 8 x10 8 3 75 35 M10 30 10 16 70 yes*
63 150 130 90 8 x10 10 3 62 20 M10 35 10 20 70 not
63 150 130 90 8 x10 10 3 80 35 M10 35 10 20 70 yes
63 150 130 90 8 x12 10 3 62 20 M12 35 12 20 120 not
63 150 130 90 8 x12 10 3 80 35 M12 35 12 20 120 yes
63 165 140 95 8 x14 12 3 80 30 M14 40 14 24 200
63 180 155,5 110 8 x14 12 3 80 30 M14 40 14 24 200

1) Bolts inserted from joint side

* Only spanner size 16

It is not possible to insert bolts from the yoke side for all designs!

Other flange connections on request.

The following connecting elements are recommeded for flange bolted connections:

  • Hexagon head bold ISO 4014-10.9 (reduced thread lenght, if available)
  • Hexagon nut ISO 7042-V-10 (self-locking)
  • All bolds must be tightened with the specified torque MA

Permitted tolerance ± 5 %
