Experts on cardan shafts and CNC machining

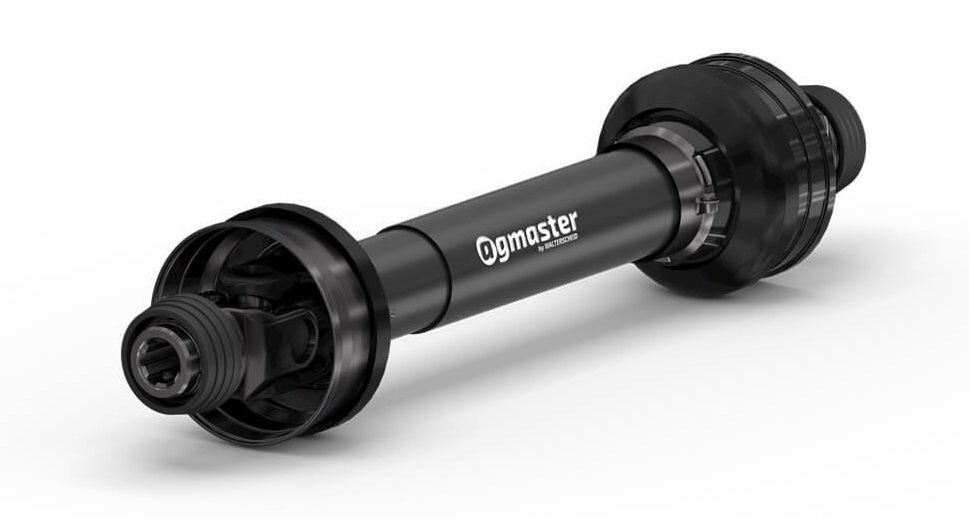

AGMASTER PTO Driveshafts
We offer original driveshafts and their repairs from original parts of the company
.
Benefits of the product:
- Excellent price-performance ratio
- 100% compatible with the Walterscheid spare parts range
- Easy quick-disconnect ASGE system at both ends
Quantity discounts available.
| Type | Cross | Power transmitted at 540 min-1 | Part Number |
Length (mm)* |
Tube | Description | Price without VAT |
|---|---|---|---|---|---|---|---|
| AGM 1 | Ø22 x 55 | 16 PS/ 12 kW | 8372849 | 560 | 00C/0A |  |
2 940,00 Kč |
| AGM 1 | Ø22 x 55 | 16 PS/ 12 kW | 8372853 | 710 | 00C/0A | |
3 097,50 Kč |
| AGM 1 | Ø22 x 55 | 16 PS/ 12 kW | 8372857 | 860 | 00C/0A | |
3 202,50 Kč |
| AGM 1 | Ø22 x 55 | 16 PS/ 12 kW | 8372839 | 1010 | 00C/0A | |
3 307,50 Kč |
| AGM 1 | Ø22 x 55 | 16 PS/ 12 kW | 8372861 | 1210 | 00C/0A | |
3 360,00 Kč |
| AGM 2 | Ø24 x 61 | 27 PS/ 20 kW | 8372850 | 560 | 0V/1 | |
3 360,00 Kč |
| AGM 2 | Ø24 x 61 | 27 PS/ 20 kW | 8372854 | 710 | 0V/1 | |
3 517,50 Kč |
| AGM 2 | Ø24 x 61 | 27 PS/ 20 kW | 8372858 | 860 | 0V/1 | |
3 675,00 Kč |
| AGM 2 | Ø24 x 61 | 27 PS/ 20 kW | 8372840 | 1010 | 0V/1 | |
3 832,50 Kč |
| AGM 2 | Ø24 x 61 | 27 PS/ 20 kW | 8372862 | 1210 | 0V/1 | |
3 937,50 Kč |
| AGM 2 | Ø24 x 61 | 27 PS/ 20 kW | 8374002 | 1210 | 0V/1 |  |
4 462,50 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8372851 | 560 | 0V/1 | |
3 990,00 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8372855 | 710 | 0V/1 | |
4 200,00 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8372859 | 860 | 0V/1 | |
4 357,50 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8372841 | 1010 | 0V/1 | |
4 462,50 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8372863 | 1210 | 0V/1 | |
4 620,00 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8374003 | 1210 | 0V/1 |  |
5 355,00 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8374004 | 1210 | 0V/1 |  |
5 355,00 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8374005 | 1010 | 0V/1 |  |
6 457,50 Kč |
| AGM 3 | Ø27 x 75 | 38 PS/ 28 kW | 8374000 | 1210 | 0V/1 |  |
7 507,50 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8372852 | 560 | 1B/2A | |
4 777,50 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8372856 | 710 | 1B/2A | |
5 040,00 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8372860 | 860 | 1B/2A | |
5 197,50 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8372842 | 1010 | 1B/2A | |
5 355,00 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8372864 | 1210 | 1B/2A | |
5 512,50 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8374006 | 1010 | 1B/2A |  |
6 982,50 Kč |
| AGM 4 | Ø32 x 76 | 53 PS/ 39 kW | 8374001 | 1210 | 1B/2A |  |
7 980,00 Kč |
* Center UJ to center UJ (closed)
| Type | Cross | Power transmitted at 540 min-1 | Part Number |
Length (mm)* |
Tube | Description | Price without VAT |
|---|---|---|---|---|---|---|---|

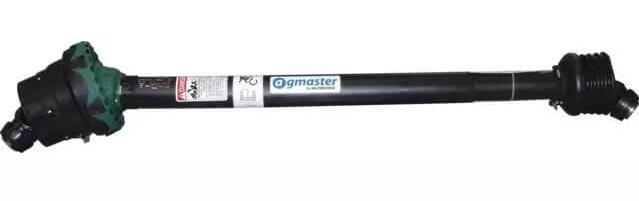

| AGM480 | Ø32 x 76 Ø27 x 94 | 83 PS/ 60 kW | 8198712 | 1210 | S4GA/S5 |  |
18 847,50 Kč |
| Type | Cross | Part Number |
Description | Price without VAT |
|---|---|---|---|---|

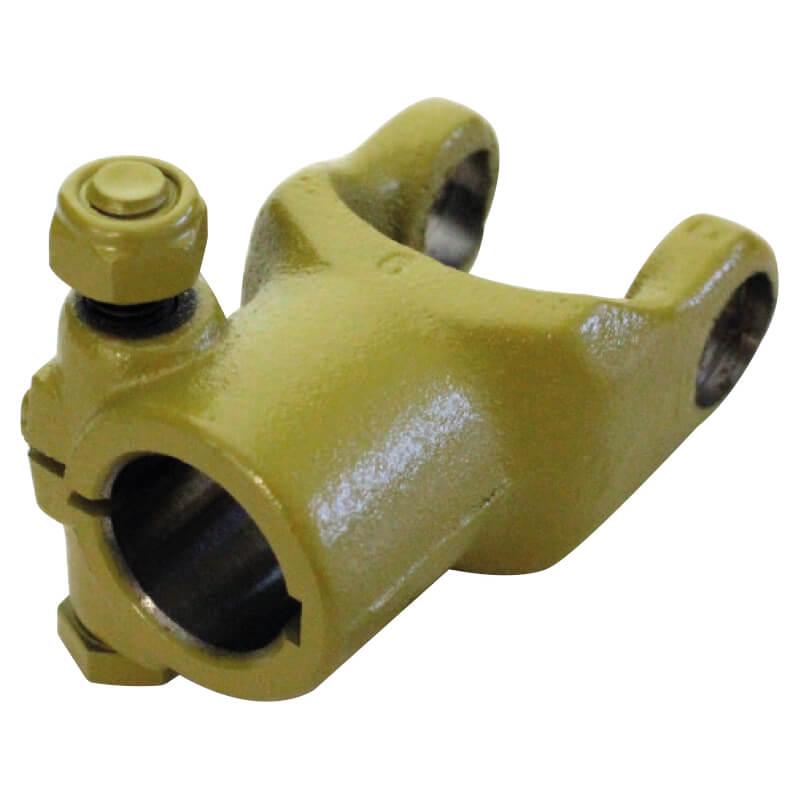

| AGM 2 | Ø24 x 61 | 8041248 | Connecting yoke Ø25H8 - 8P9 M12X60 L98 | 1 312,50 Kč |
| AGM 3 | Ø27 x 75 | 8041521 | Connecting yoke Ø30H8 - 10P9 M12X60 L107 | 1 312,50 Kč |
| AGM 3 | Ø27 x 75 | 8041335 | Connecting yoke Ø35H8 - 10P9 M12X80 L111 | 1 312,50 Kč |
| Type | Cross | Part Number |
Description | Price without VAT |
|---|---|---|---|---|

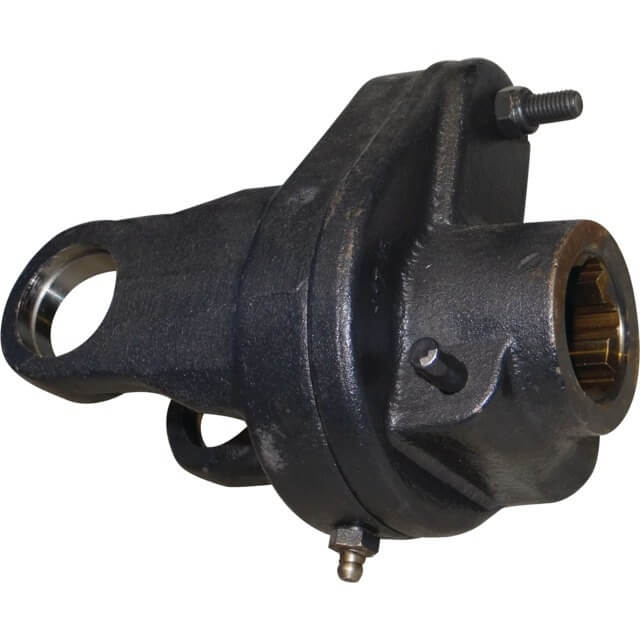

| AGM 3 | Ø27 x 75 | 8335848 | Shear bolt clutch 1 3/8" 1600 Nm | 2 835,00 Kč |
| AGM 4 | Ø32 x 76 | 8327808 | Shear bolt clutch 1 3/8" 2130 Nm | 2 835,00 Kč |
| Type | Cross | Part Number |
Description | Price without VAT |
|---|---|---|---|---|

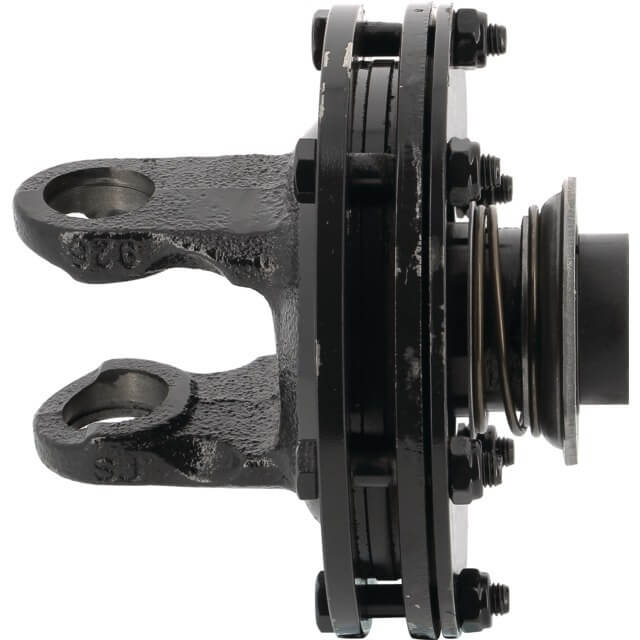

| AGM 3 | Ø27 x 75 | 8391586 | Friction clutch 1 3/8" 900 Nm | 4 462,50 Kč |
| AGM 4 | Ø32 x 76 | 8394662 | Friction clutch 1 3/8" 1400 Nm | 4 725,00 Kč |
Here you can download the OPERATORS MANUAL or write us an email with your inquiry..
