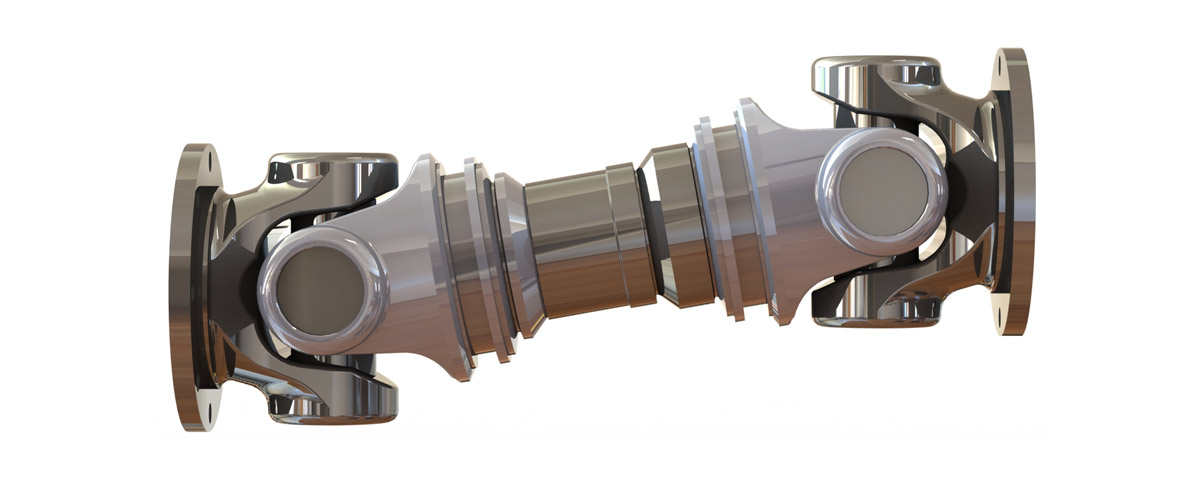

Extra short cardan shafts -

Extra short cardan shafts up to 160 kNm with lenght displacement

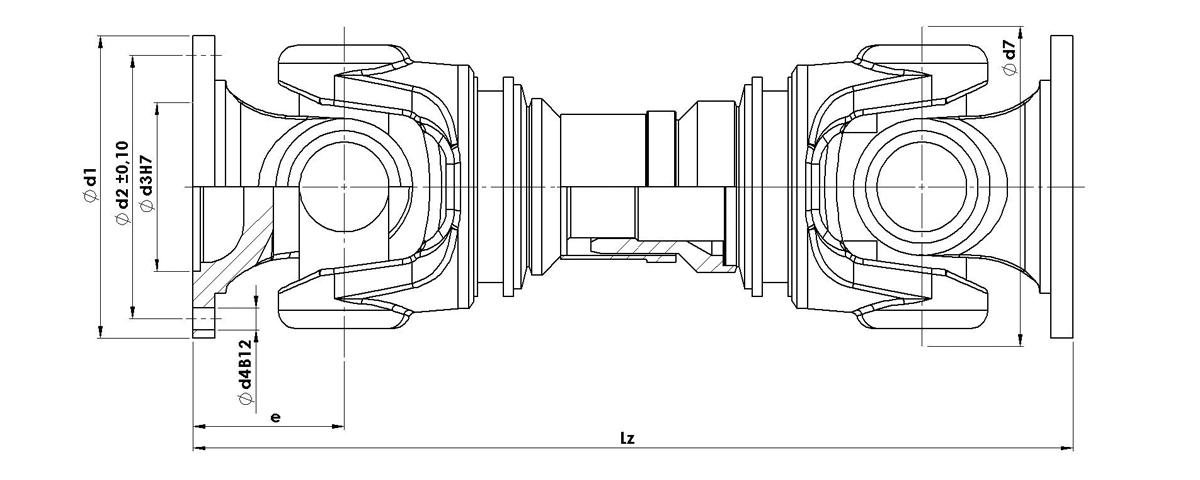

Size	MdB	MdG	MdW	d1	d2	d3	z x d4	b	t1	d5	t2	d7
	[Nm]	[Nm]	[Nm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
63	4400	6200	-	150	130	90	8 x12	10	3	95	24	125
73	17000	25000	-	180	155,5	110	10x16	14	3	95	26	178
73*	17000	25000	-	180	150	-	4 x14	18	-	-	-	178
80	26000	33000	13000	225	196	140	8 x16	15	5	160	30	215
85	37000	-	23000	348	314	175	10x18	18	7	-	-	285
90	80000	-	40000	360	328	175	10x18	18	7	-	-	315
97	160000	-	75000	390	345	250	10x24	28	7	280	35	350
98	160000	-	75000	390	345	250	10x24	28	7	280	35	370

MdB ... Reference torque
MbG ... Limiting torque
MdW ... Alternating torque
* only XS-flange connection

Size	ß _max	e	LZ _min	LA _min	m _min	J _min	C _min	LZ _max	LA _max	m _max	J _max	C _max
	[°]	[mm]	[mm]	[mm]	[kg]	[kgm²]	[kNm/rad]	[mm]	[mm]	[kg]	[kgm²]	[kNm/rad]
63	20	62	340	30	12,8	0,0225	87,5	365	50	13,5	0,023	86
73	10	85	365	15	33,6	0,097	450	475	70	41,9	0,111	420
73*	5	56	290	15	30,8	0,094	590	420	70	40,3	0,11	535
80	5	108	485	35	64	0,285	760	585	85	72,2	0,298	710
85	5	110	545	40	124	0,836	1470	595	80	129	0,851	1420
90	5	105	600	40	190	2,15	3240	700	110	210	2,28	3100
97	15	195	1025	50	437	6,42	5320	1085	100	451	6,53	5220
98	15	195	1025	50	445	6,68	5330	1085	100	459	6,8	5230

β _max ... maximum joint deflection angle
L _min ... shortest lenght
LZ _max ... longest compressed length
LA _min ... lenght compensation for LZ _min
LA _max ... lenght compensation for LZ _max
m _min ... values for LZ _min
J _min ... values for LZ _min
C _min ... values for LZ _min
mR ... values per 1 m tube length
JR ... values per 1 m tube length
CR ... values per 1 m tube length

* only XS-flange connection
